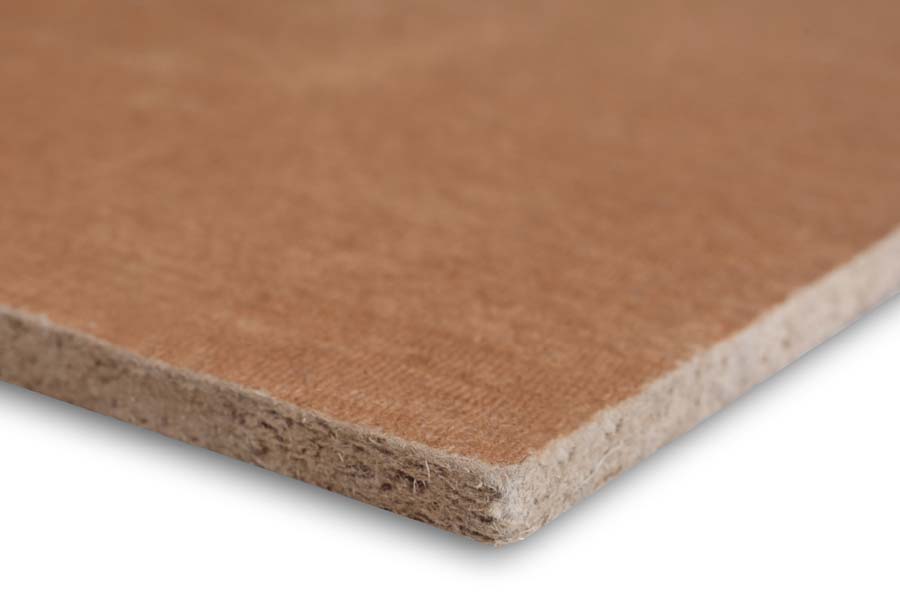

Evowood Softboard
Overview
- Lightweight
- Vesatile
- Green credentials
Why Choose Evowood Softboard?
Light Weight
Evowood Softboard is a low density, high quality fibreboard that is lightweight, easy to handle and easy to install
Versatile
Able to fulfill a variety of different applications, Evowood Softboard can be used in a multitude of ways such as display boards, office screens or packaging, for example.
Cellular Nature
The cellular nature of Evowood Softboard makes it an effective insulate of both heat and sound.
Thermal Conductivity
An effective insulate, Evowood Softboard is popular for ceiling insulation due to its excellent thermal retaining properties.
Sound Insulation
Evowood Softboard is also an effective sound insulator and is commonly used as acoustic enhancing screens, acoustic floor underlay and wall linings.
Green
Our products are formaldehyde free, carry an e-zero emission rating and are manufactured in accordance with FSC regulations using natural binders
General Uses for Evowood Softboard
- Insulation Ceiling Boards
- Wall Linings
- Flooring Acoustic Underlay
- Protective Packaging
- Protective Covering Boards of High Cost Horizontal and Vertical Surfaces on Building Projects
- Display Boards
- Office Screens
- Pin Boards
- Backing Boards
- Cake Boards
- Expansion Joints
- Firelighters
Materials Data for Evowood Softboard
| Property | Unit | Specification | ||
| Nominal Thickness | mm | 10.0 | 13.0 | 19.0 |
| Thickness Tolerance | mm +/- | 0.7 | 0.7 | 1.0 |
| Mass | kg/m³ approx | 2.3 | 3.2 | 4.8 |
| Density | kg/m³ max | 400 | 400 | 400 |
| Linear expansion/Contraction in Range 33% to 90% RH @20ºC | % max | 0.5 | 0.5 | 0.5 |
| Thermal Conductivity | (k) W/MºC max | 0.06 | 0.06 | 0.06 |
| Thermal Resistance | (R) M2ºC/W Av | 0.222 | 0.289 | 0.422 |
Size Specifications: 1220×1830, 1220×2440, 1220×3050, 1220×3660, 1200×4880

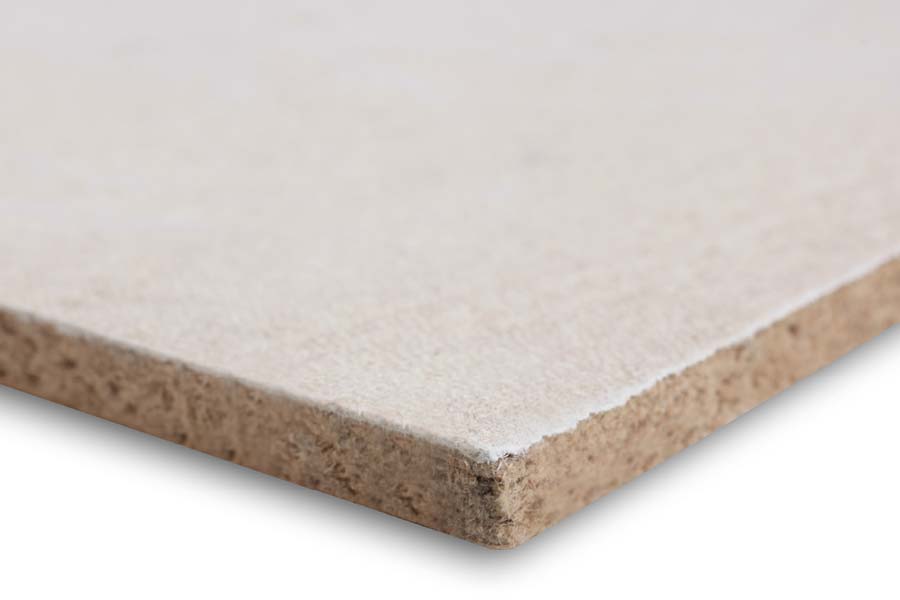

Evowood Primecote
Overview
- Lightweight
- Primed
- Green credentials.
Why Choose Evowood Primecote?
Lightweight
Made from Evowood Softboard, a low density and high quality fibreboard, Evowood Primecote is lightweight, easy to handle and easy to install.
Versatile
Able to fulfill a variety of different applications, Evowood Primecote can be used in a multitude of ways, including insulation ceiling boards, display boards and office screens.
Easy Wipe
Evowood Primecote is easy to clean. Simply use mild soapy water to remove dust and debris from the surface of the softboard.
Green
Our products are formaldehyde free, carry an e-zero emission rating and are manufactured in accordance with FSC regulations using natural binders.
Primed
The smooth surface of Evowood Primecote is primed with a white primer to provide the ideal surface for paint finishes.
General Uses for Evowood Primecote
- Insulation Ceiling Boards
- Wall Linings
- Flooring Acoustic Underlay
- Protective Packaging
- Protective Covering Boards of High Cost Horizontal and Vertical Surfaces on Building Projects
- Display Boards
- Office Screens
- Pin Boards
- Backing Boards
- Cake Boards
- Expansion Joints
Materials Data for Evowood Primecote
| Property | Unit | Specification | ||
| Nominal Thickness | mm | 10.0 | 13.0 | 19.0 |
| Thickness Tolerance | mm +/- | 0.7 | 0.7 | 1.0 |
| Mass | kg/m³ approx | 2.3 | 3.2 | 4.8 |
| Density | kg/m³ max | 400 | 400 | 400 |
| Linear expansion/Contraction in Range 33% to 90% RH @20ºC | % max | 0.5 | 0.5 | 0.5 |
| Thermal Conductivity | (k) W/MºC max | 0.06 | 0.06 | 0.06 |
| Thermal Resistance | (R) M2ºC/W Av | 0.222 | 0.289 | 0.422 |
Size Specifications: Various sizes in 10mm, 13mm and 19mm thickness.
